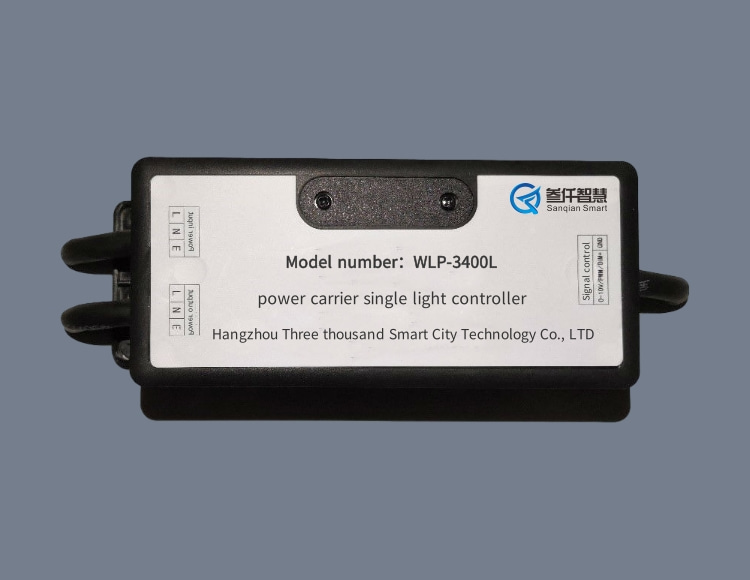

WLP-3400L Basic introduction of power carrier single lamp controller:

WLP-3400L Power carrier (PLC) single lamp controller is a new generation street lamp controller developed to meet the market demand, and is an important part of the lamp network control system. It is used in conjunction with our centralized controller to achieve the function of single lamp control of the intelligent street lamp system. This product can be used in park street lights, municipal street lights, campus street lights, community street lights and other public lighting remote centralized energy saving management and single light energy-saving control, the scene of the street lights for a single lamp remote control.

Power carrier single lamp controller Product features:

A. Data collection function

1. Running time of the lamp

2. Voltage and current

3. Status of the lamp

4. Current power consumption

5. Alarm diagnosis

6. Power factor

B. The single-light controller communicates bidirectional with the concentrator manager

1. The concentrator query function can be performed

2. The concentrator control function can be implemented

3. Perform the concentrator parameter setting function

C. Single light controller control function

1. With 0-10V and PWM dimming interface, it can realize stepless dimming of LED lamps and achieve single light energy saving

2. With 1 switch control function

3. The single-light controller can operate the control function independently according to the prefabricated strategy of the concentrator strategy

4. The single-light controller can operate independently according to the concentrator policy prefabricated policy to control the energy-saving function

5. Built-in timing strategy, latitude and longitude strategy, illuminance strategy, and comprehensive strategy.

6. The single light controller supports off-network operation, and operates autonomously when the communication with the concentrator is interrupted

7. The failure of the single light controller does not affect the normal operation of other single light controllers and the normal operation of the single light concentrator.

8. Provide the central manager with important data to truly and effectively reduce energy usage and operating costs.

9. Provide the central manager with important data to truly and effectively reduce energy usage and operating costs.

10. Use power line networking technology to optimize network communication.

11. Each light can be controlled remotely.

12. Cable anti-theft monitoring and alarm function

13. Effectively reduce installation and deployment costs.

14. The function of remote firmware upgrade can make the lighting system cost lower in the future.

15. The switch and dimming of the street lamp can be controlled according to the longitude and latitude schedule in the centralized manager, and the switch and dimming can also be photocontrolled with the light sensor.

WLP-3400L Power Carrier Single lamp controller Certification and safety:

CE RoHs certification

Comply with the EU 2002/95/EC requirements for the restriction of the use of certain hazardous substances in electrical and electronic equipment.

① Under normal atmospheric conditions, the insulation resistance should not be less than 100MΩ

② Under hot and humid conditions, the insulation resistance should not be less than 2MΩ

③1.5kV power frequency voltage, leakage current is not more than 5mA

④ The service life of single lamp controller is 8-10 years.

WLP-3400L Power carrier single lamp controller note:

The power carrier single lamp controller can be installed in the luminaire, or in the manhole of the light pole, or in a tray, or in a separate control box

Ask professional installation personnel for on-site installation;

Storage environment: Avoid damp, water environment;

Do not install in an environment with long-term high temperature, so as not to affect the service life;

Handling: It is strictly prohibited to fall from high altitude and accumulate too much;

During installation, make sure that the wiring terminal is insulated.

When installing, pay attention to the polarity of the dimming signal output line when connected to the drive power supply, do not reverse the connection;

During the installation, do not switch the AC input cable to the AC output cable, and ensure that the null live cable is correctly installed. Need to install 6A fuse before terminal AC input;

Do not connect the dimmer signal output line to the AC output line incorrectly.

WLP-3400L Technical parameters of power carrier single lamp controller:

Operating temperature: -40℃ ~ +70℃;

Storage temperature: -40℃ ~ +85℃;

Ambient humidity: 5% to 95% RH;

Atmospheric pressure: 80kPa ~ 106kPa

Vibration: 5Hz-7.5Hz@0.5 "D.A., 5.5Hz-200Hz@1.5G

Impact: 30g@11ms; 100g @ 3ms (Half sine)

IP Protection Level: IP67 Suitable for outdoor applications

Input voltage: 85-265VAC

Input frequency: 47-63HZ

Maximum load power: 500W(LED light)

Single lamp controller power consumption: ≤3W

Measurement accuracy: ≤2%

Product size: 156*60*40mm
