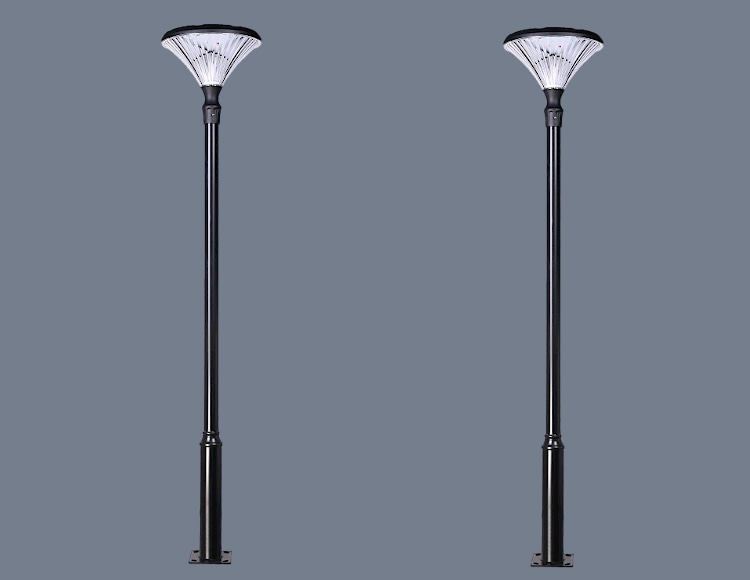

SVIP-3A15T Solar Garden light

Product name: Solar garden light

Product height: 3-5 meters (height and shape can be customized)

Application scenario: Suitable for outdoor lighting scenes such as courtyards, villas, residential areas, parks, science and technology industrial parks, modern factories, cultural and tourism venues, etc.

Main functions: New energy garden street light is a new generation of solar garden light based on solar photovoltaic power generation light control + intelligent charge and discharge management system, with single light switch, dimming, metering, alarm operation monitoring, policy storage control and other functions.

Basic introduction：New energy garden street lights using monocrystalline silicon solar panels, can quickly obtain solar energy photoelectric conversion rate of up to 21%, with long life, no wiring, zero electricity, easy installation, less investment and other characteristics, lamp holder using geometric elements to design, combined installation brings flexible feeling, reflecting science and technology, fashion and modern sense and craft texture.

資料下載產品資質 使用案例產品選型

品質保證

兩年質保，終身維護

合作模式

經銷、代理、OEM/ODM

售前售后

12小時內快速回應

產品介紹技術參數 尺寸說明

Solar street light is the sun for energy, solar panels charge the battery during the day, and the battery supplies power to the load at night, without complex and expensive pipeline laying, the layout of the lamp can be adjusted arbitrarily, safe, energy-saving and pollution-free, no manual operation is stable and reliable, saving electricity and maintenance.

Solar garden light manufacturer

1. System composition

The system is composed of a solar cell component (including a bracket), an LED lamp holder, a control box (with a controller and a battery) and a lamp pole. Solar panel light efficiency reaches 127Wp/m2, high efficiency, which is very beneficial to the wind resistance design of the system; The lamp head part uses 1W-5W white LED and 1W-5W yellow LED integrated on the printed circuit board as a lattice with a certain spacing as a plane light source.

2. Working principle

The working principle of the system is simple, the solar cell made of the photovoltaic effect principle receives solar radiation energy during the day and converts it into electrical energy output, which is stored in the battery through the charge and discharge controller. At night, when the illuminance gradually decreases to about 10lux, the solar panel open circuit voltage is about 4.5V, the charge and discharge controller detects this voltage value and then acts. The battery discharges the lamp cap. After the battery is discharged for 8.5 hours, the charge and discharge controller acts and the battery discharge ends.

All the products we produce are strictly implemented in accordance with the standard material inspection, process inspection, finished product shipment inspection, to ensure that customers get satisfactory products, the company has built a perfect pre-sale, sale, after-sales service system, everywhere for your interests, truly achieve one-to-one service.

Solar garden light manufacturer

SVIP-3A15T Solar Garden light Technical parameters:

Lamp body material: aluminum +PC; Lamp body size: 530*H490MM; Light source configuration: 30W; System: 20W solar panel +30AH battery; Light source color temperature: 6000K; Light body color: semi-light black; Surface treatment: anti-corrosion treatment, spray high-quality outdoor fluorocarbon paint; Fixed parts: stainless steel fastening screws; Voltage: DC3.2V.

SVIP-3A15T Solar Garden Light Size parameters:

Lamp body size: 530*H490MM; Light pole height: 3 meters.
